Specifications:

-Name: Pure sine wave power inverter

-Input voltage: DC 12V for car

-Output voltage : AC 220V (210~230V)

-Output frequency: 50Hz

-Peaks Power : 3000W/4000W/6000W/8000W

-Rated power: 3000W=500W, 4000W=800W, 6000W=1000W,8000W=1300W (Please make sure that the total rated power of the connected devices is ? Rated power 500W / 800W / 1000W / 1300W)

-Maximum Active Surge Rating (less than 1 second) :3000W/4000W/6000W/8000W

-Maximum AC Current per socket :8.33Ampere

-Output Waveform: True/pure sine wave (<3% THD)

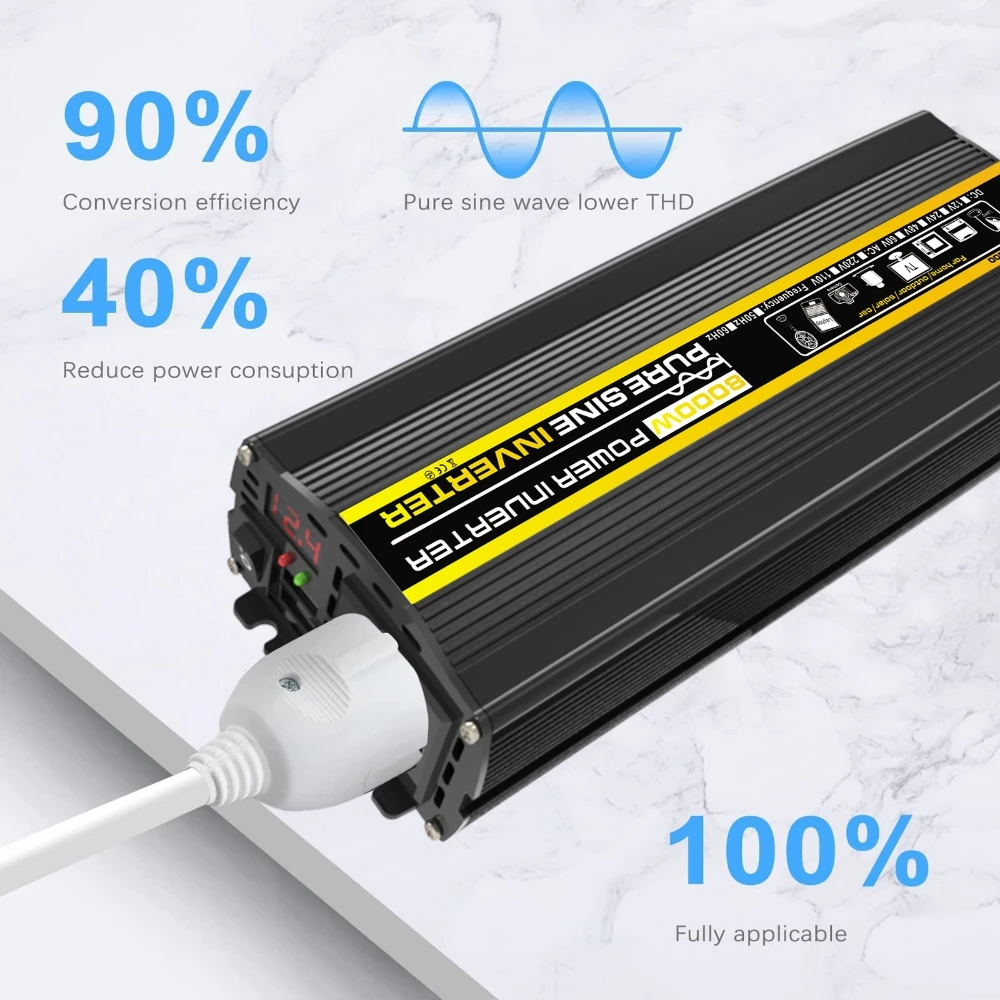

Efficiency: 90?%

-No Load Current Draw (DC side) <0.6 A

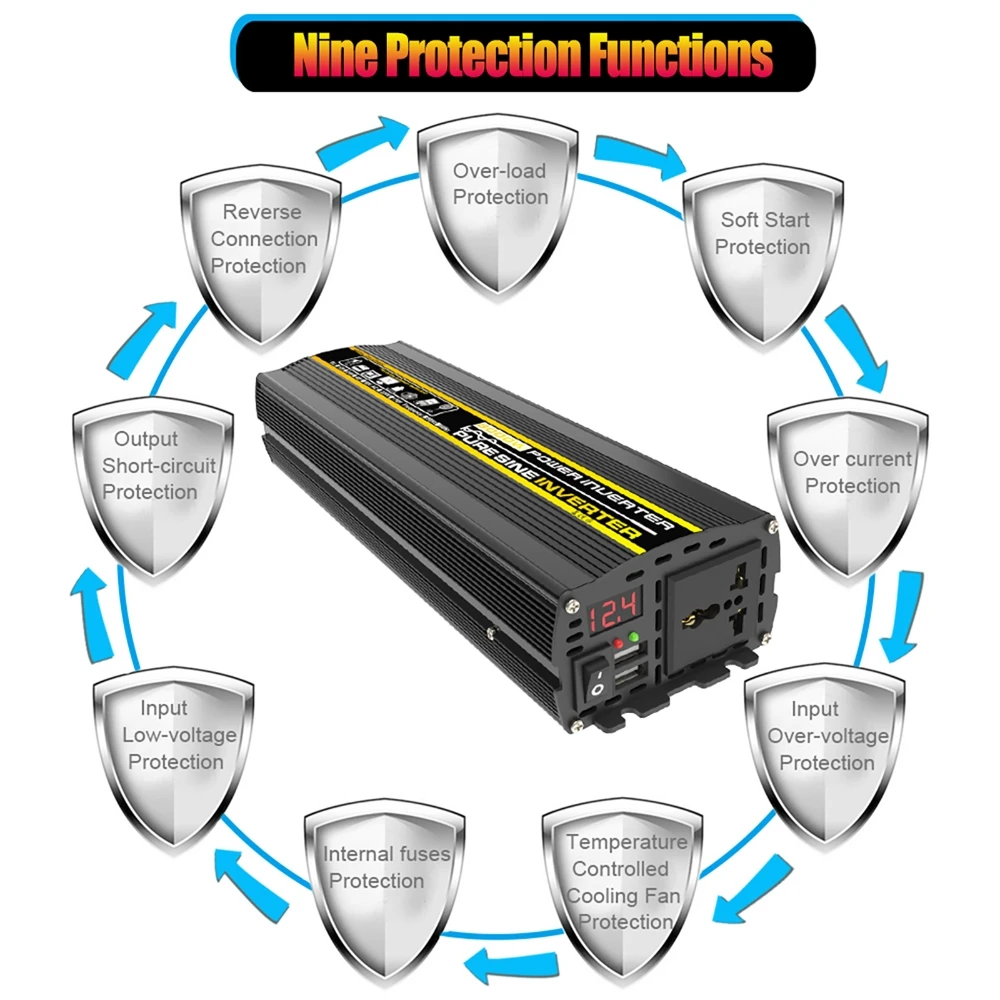

-8 Safety Protection Function:

Reverse polarity protection, Low input voltage protection, High input voltage protection, Over-current protection, Short circuit protection, Over temperature protection, Overload protection, Internal fuses

Features:

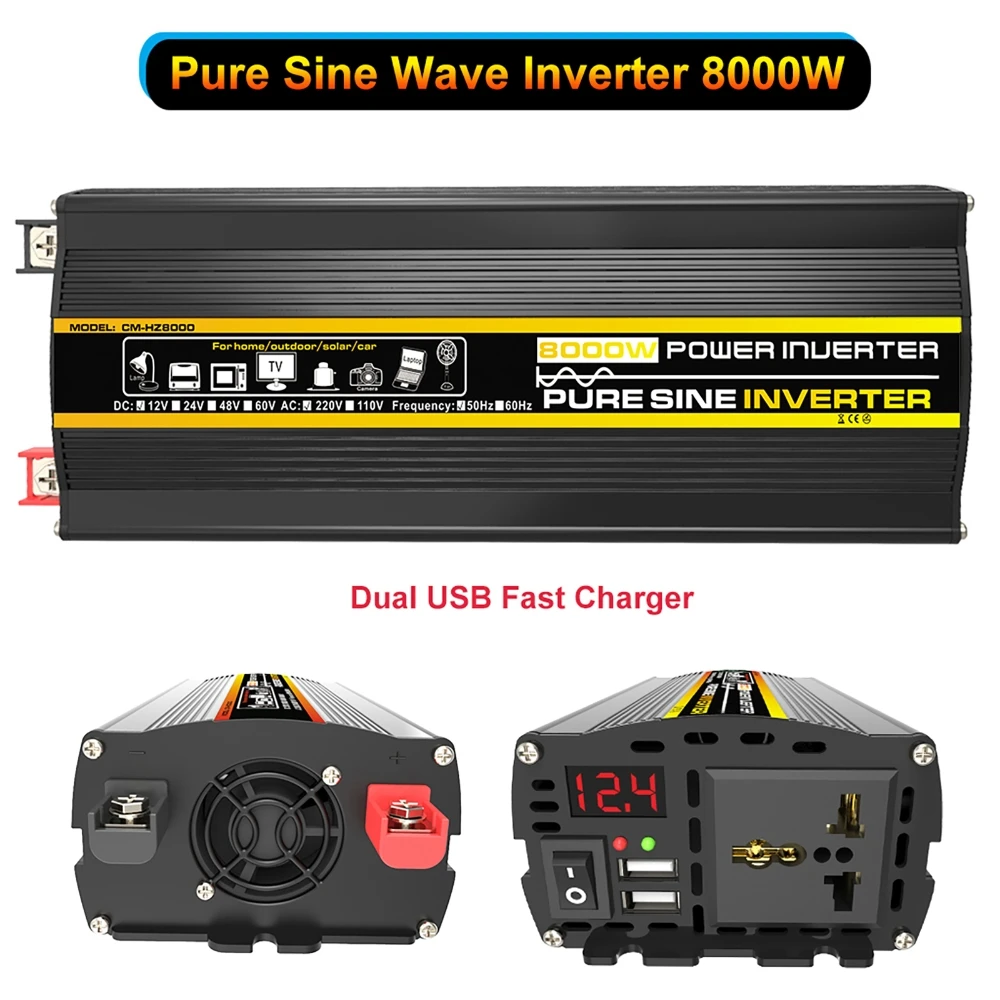

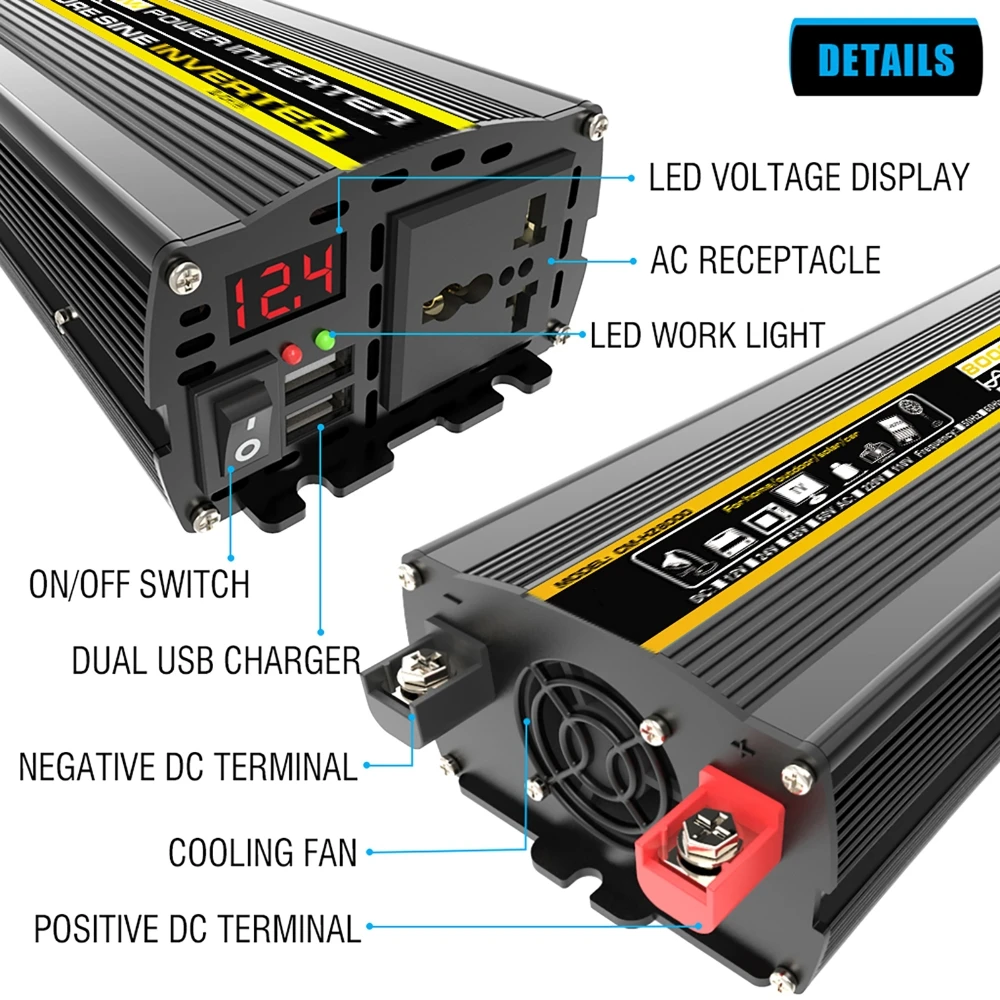

* [Pure Sine Wave] Converts 12V DC to AC 220V household wall power with continuous 500W / 800W / 1000W / 1300W output (3000W/4000W/6000W/8000W surge capability) with 1 AC receptacles, one LED Voltage display, high current DC terminals and two LED work lights. (Please make sure that the total rated power of the connected devices is ? Rated power 500W / 800W / 1000W / 1300W)

* [Strong and sturdy] Plastic housing provides advanced protection from drops and bumps.

* [LED Green&Red Work Lights] When inverter work normal, the two green LED Lights work, but when it is on protection status, the Red Led Lights will light up.

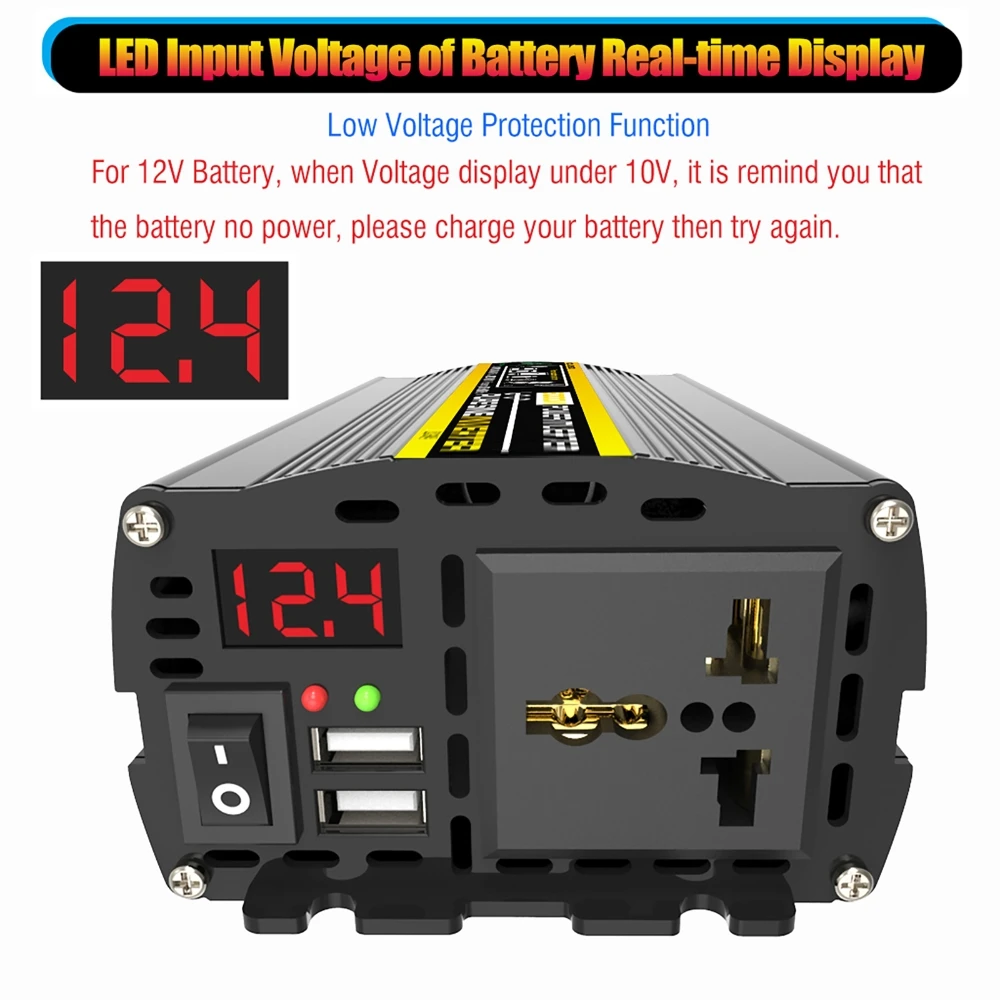

* [LED Voltage Screen display] LED Display shows the battery Input real-time voltage and remind you to charge your battery according to the low voltage.

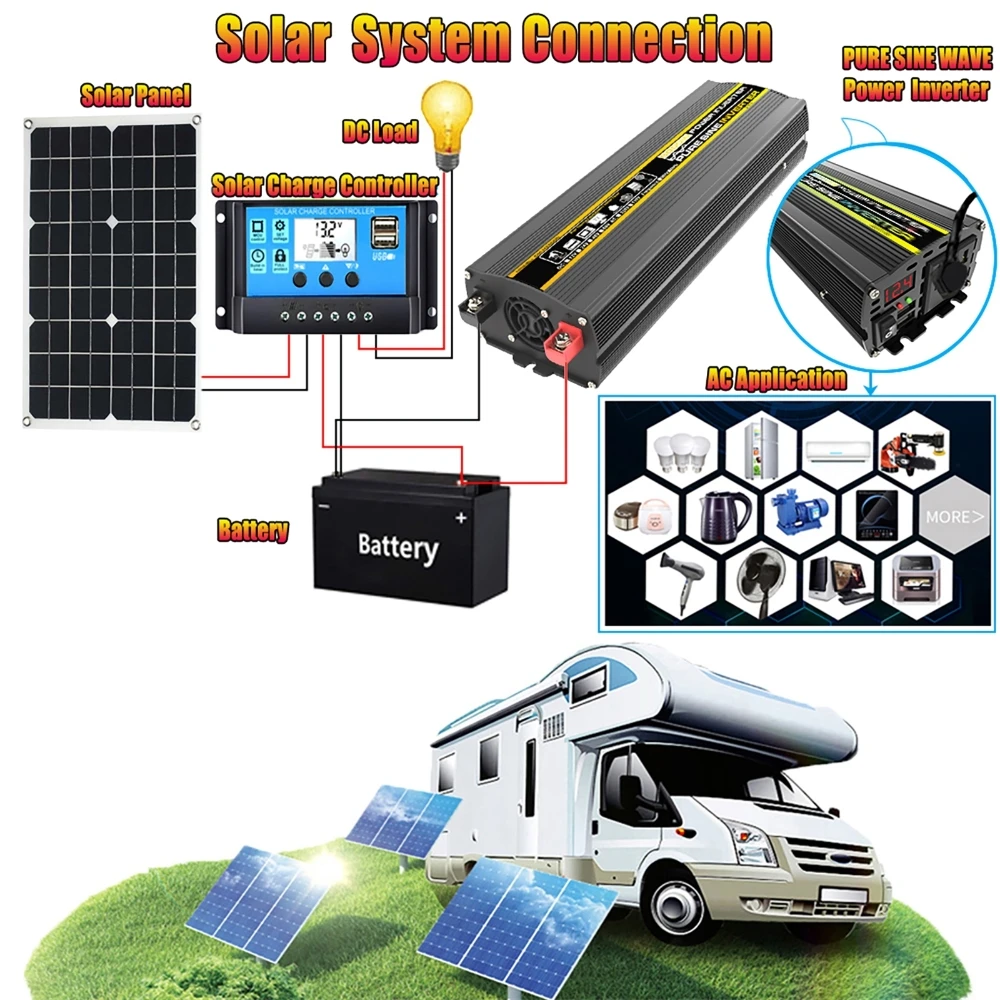

* [Widely Applications ] Great for gift,charging TV, washing machine, air conditioner, refrigerant, Microwave and big power appliance. These can only operate a few 220V loads without interference. It can also use with in the car or solar system.

* [Car Becomes RV] With our car power inverter, you can use most of home appliances in your car in the open air, such a watching TV, playing games, give you the experience like being in an RV.

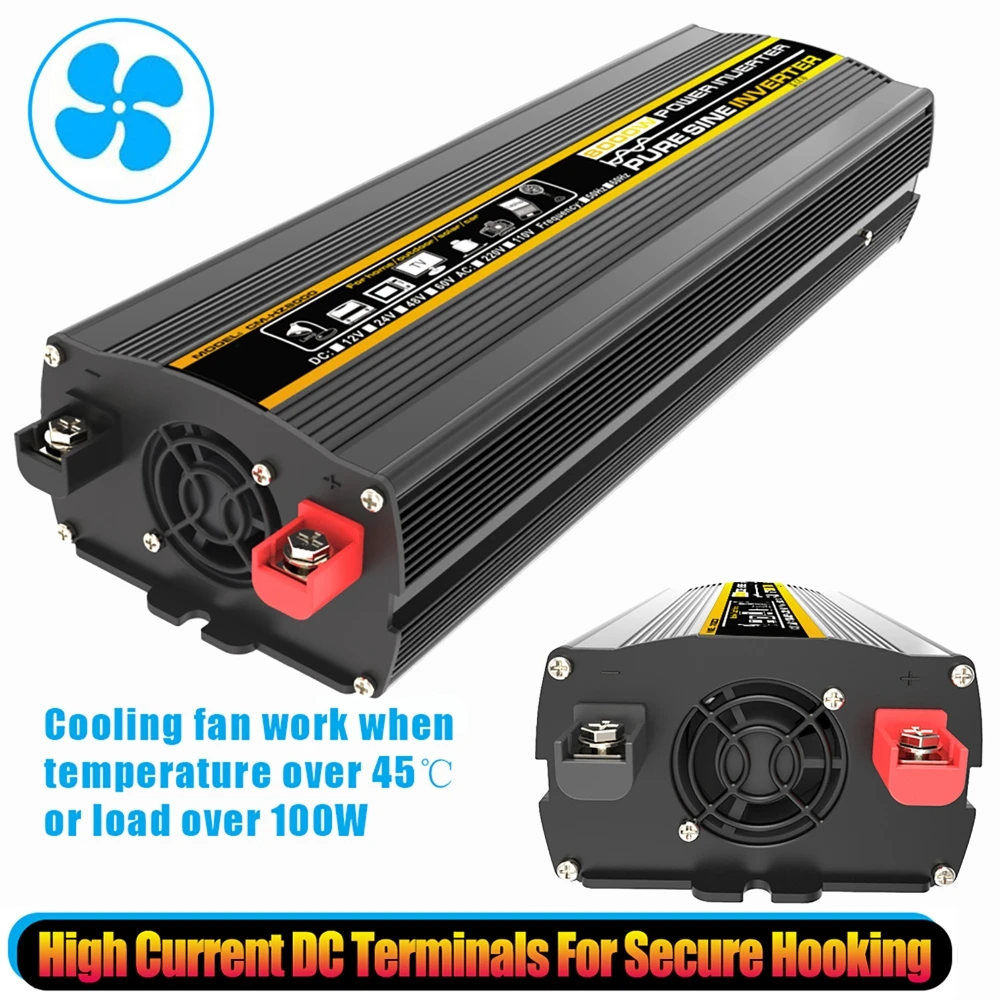

* [Silent Intelligent Cooling Fan] Equipped with silent cooling fan, it will automatically runs at different speed according to power load (watt) load and temperature for dissipating heat and reducing working noise.   There is a temperature sensor built in the inverter. When it is over 45?, the fans will work automatically. When the temperature is over 75 ?-80 ?, the inverter will be in protection mode till it cool down.

NOTE:?Pure Sine Wave Inverter suitable for sensitive load appliances, such as refrigerators, air conditioners, coffee machines, bread machines, induction cookers, etc.?

Battery Usage Time Calculation:

1)The working time of inverter, it is depend on the battery power and load power.

2)Formula: Working time (hours)= Battery Capacity X Battery Voltage X 0.8X0.9/Load Power

3) For example, the battery of 12V 60A is supplied to a 220V 100W bulb.

The working time is = 12(V) X 60(AH) X 0.8 X 0.9/100(W)=5.18(hours)

(Note: 0.8 is battery discharge coefficient, 0.9 is inverter conversion efficiency)

What Size Power Inverter Do I Need?

The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).

Packing included:

1 x Power Inverter

2 x Battery Clip

2 x Battery Cable

1 x User Manual
